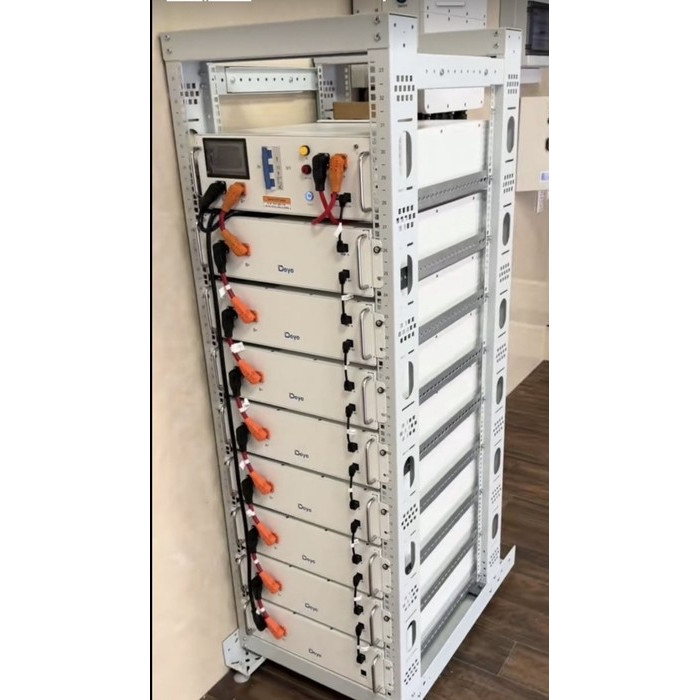

Battery Rack for 8 Deye BOS-G PRO / SE-G5.1 Pro-B Modules with BMS Slot
Best Seller
€435.00
DAP EU (Delivery at Place)
● In Stock
Battery Rack for 8x Deye BOS-G PRO / SE-G5.1 Pro-B with BMS Rails
SKU: GXBR1002-32-7035
✔ 20 min Assembly ✔ 600kg Load Capacity ✔ 360° Ventilation ✔ Flat-pack Shipping
Capacity & Compatibility:
| Deye SE-G5.1 Pro-B (LV) | Up to 9 units |
| Deye BOS-G PRO (HV) | 8 Batteries + 1 BMS |
| Mounting Type | L-bracket Rails |
13 100 грн
Specifications
| Material: | High-quality 2.0 mm steel |
| Coating: | Powder coating (Grey RAL 7035) |
| Construction Type: | Assembled (Flat-pack) |
| Max Static Load: | 600 kg |
| Battery Compatibility: | Deye SE-G5.1 Pro-B, BOS-G PRO |
| Capacity: | 8-9 modules (depending on model) |
| Country of Origin: | Ukraine (GlobalX) |
Description
GlobalX Universal Reinforced Rack for Deye — a professional engineering solution designed for the secure and compact installation of battery modules in autonomous and backup power systems. This model is specifically adapted to the dimensions and heavy weight of Deye modules, including High Voltage (HV) configurations.
Key Design Advantages:
- Extreme Durability: High-quality steel construction allows the rack to confidently support a total static load of up to 600 kg without structural deformation.
- Versatility and Capacity: Accommodates up to 9 modules of SE-G5.1 Pro-B (LV) or a stack of 8 batteries + 1 BMS controller for BOS-G PRO (HV) systems.
- Efficient Cooling: The open-frame architecture provides 360° natural ventilation, which is critical for the stable operation of LiFePO4 cells during intensive charge/discharge cycles.
- Easy Assembly: Precision laser cutting and smart connections ensure full assembly in under 20 minutes.
Technical Specifications:
| Dimensions (Assembled) | 1600 x 540 x 810 mm (HxWxD) |
| Coating | Powder coating (scratch-resistant) |
| Storage Capacity | 8 Batteries + 1 BMS unit (or up to 7 Batteries) |
| Max Static Load | 600 kg |
| Country of Origin | Ukraine (GlobalX) |
Package Includes:
The rack is shipped disassembled in compact Flat-pack packaging to minimize logistics costs. The kit includes:
- Vertical support frames;
- 9 pairs of reinforced horizontal guide rails (L-brackets);
- Complete hardware kit for assembly.
Note: Battery modules, BMS units, and connection cables are not included.
Equipment
- Vertical support frames — 2 pcs.
- Floor support bases — 2 pcs.
- Top protective cover (roof) — 1 pc.
- Reinforced horizontal guide rails (L-brackets) — 9 pairs.
- Complete mounting hardware kit (bolts, nuts) for frame assembly.
- Assembly instructions.
Note: Battery modules and connection cables are not included.
